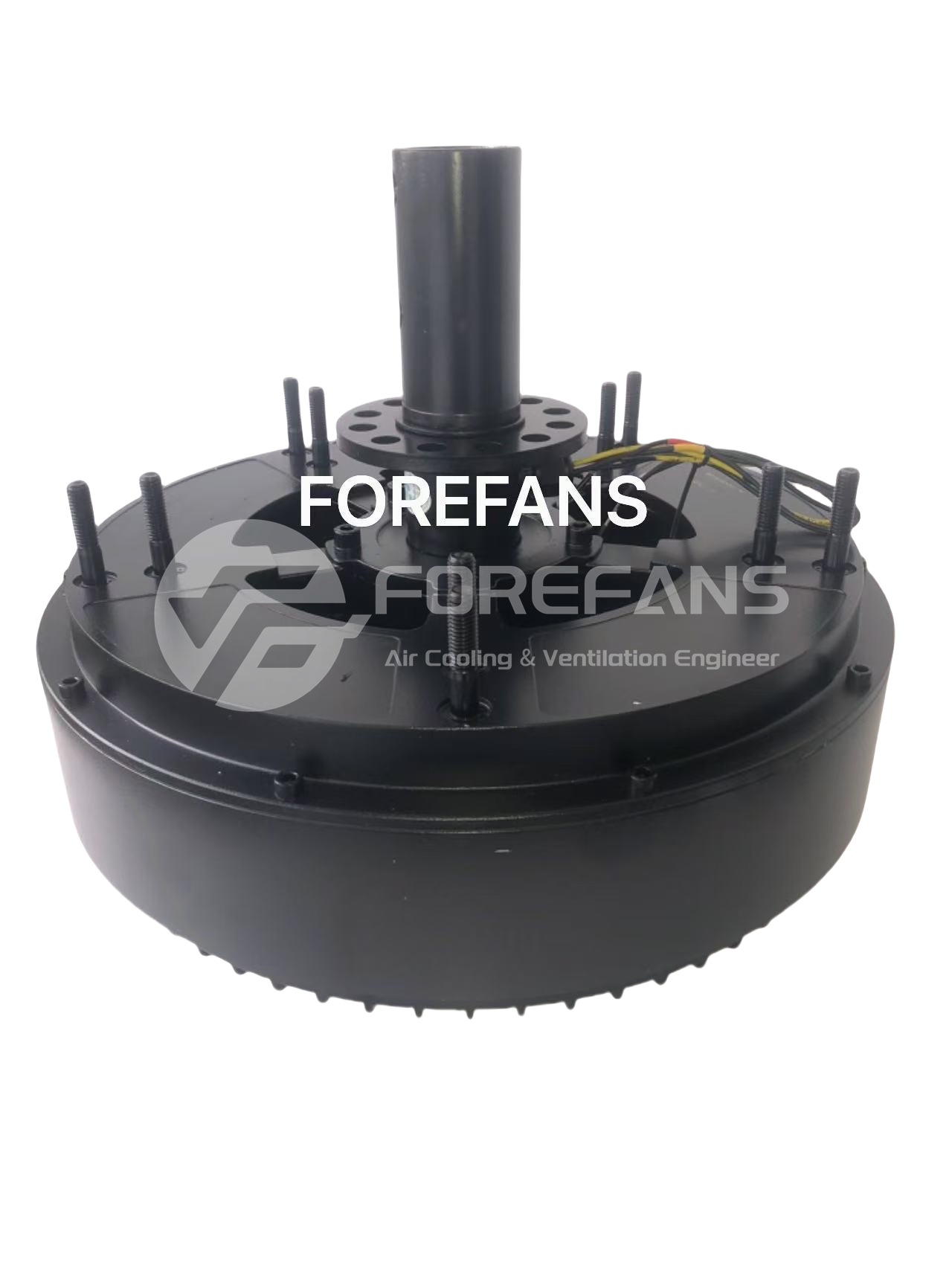

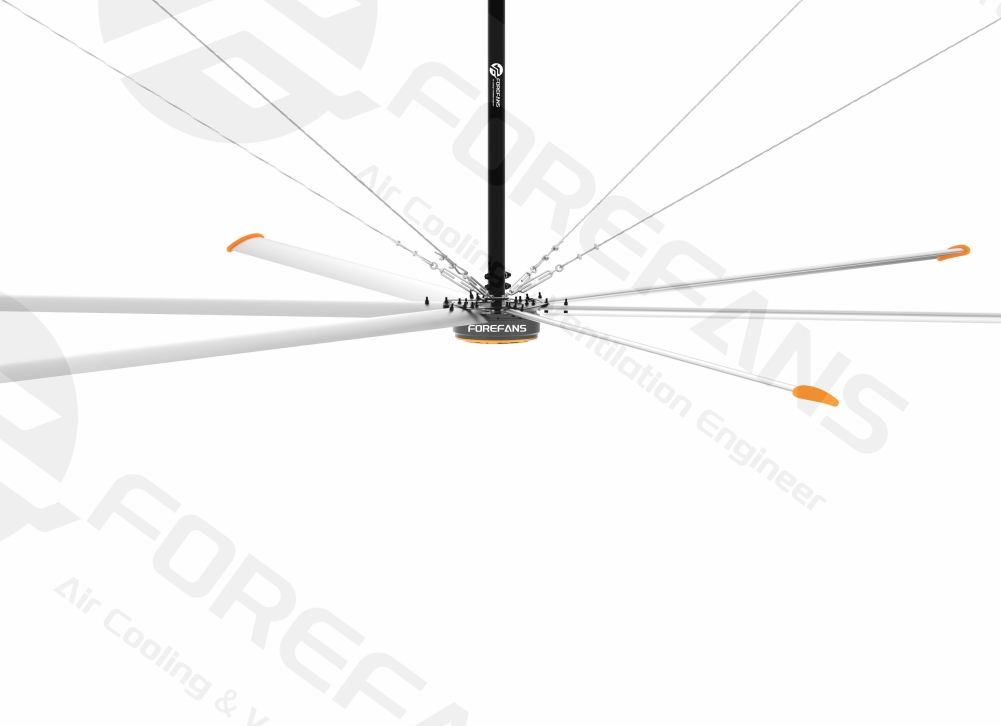

JF Series- 6 blades PMSM HVLS ceiling fans with high efficiency PMSM direct drive motor specifically designed for industrial, commercial and agriculture applications where high air volume low speed and low noise are needed.
Key Features:
• PMSM motor 230V AC/1p or 380V AC/3p • High energy efficiency IE4 level PMSM motor
• Smart vector controlling system • Fluorocarbon Coating AA6063 extruded blades
• Gearless for silent operation • Maintenance free
• Key Safety features • Simplified electrical wiring connection
• Strong and robust design and manufacturing • Speed controllable

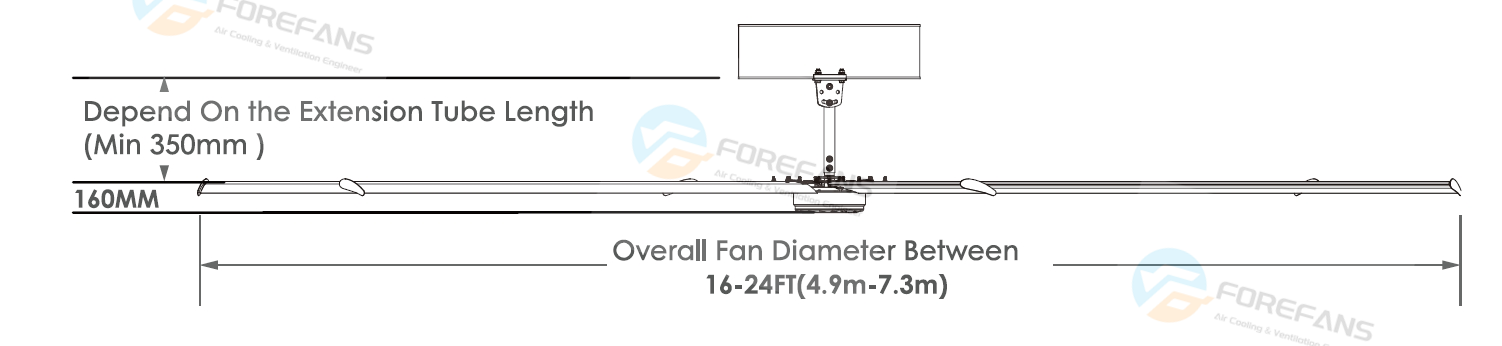

JF Series HVLS fan Dimension:

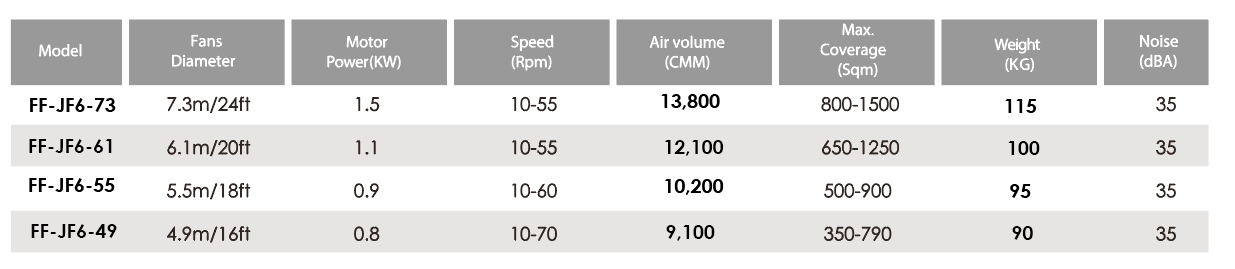

JF series HVLS fan Technical Specification:

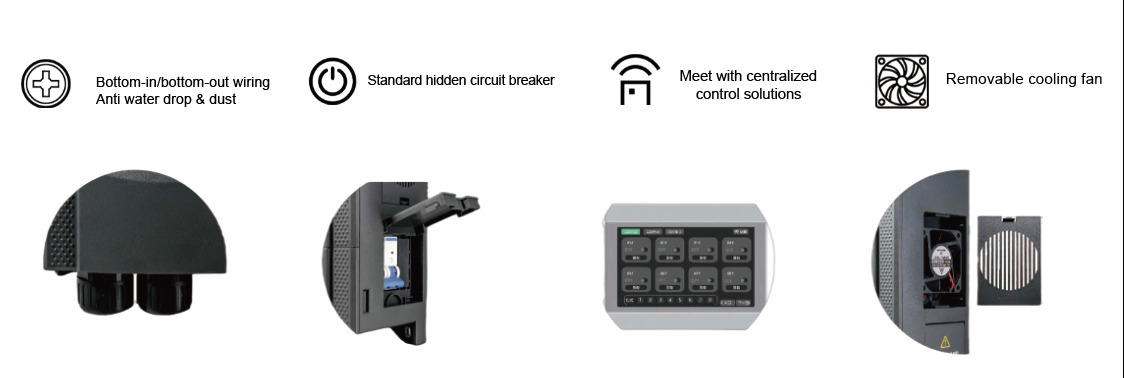

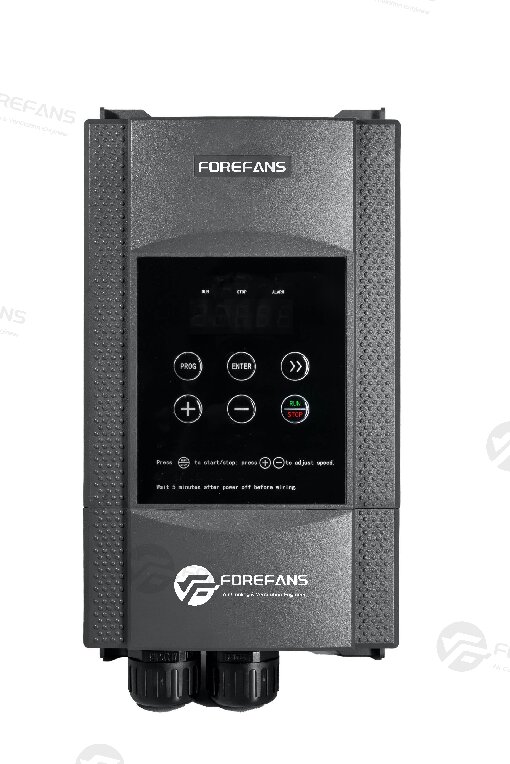

JF series HVLS fan Controller:
